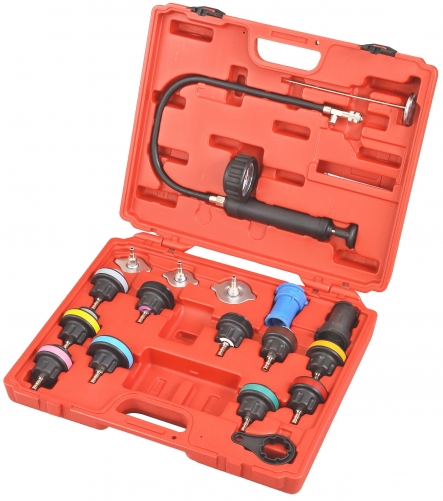

　Name ： ET-7230N Universal Radiator Pressure Tester Kit – 18pcs
Product Introduction：
ET-7230N
Universal Radiator Pressure Tester Kit – 18pcs
Product Detail：






1.  Contents:

1.1 Specification- Radiator Pressure Tester:















































































No.  Radiator Cap Application
0 Thermometer
1 Pressure Testing Pump with Gauge
2A Connector R123/R124(Black color)
2B Connector R123/R125(Blue color)
3 Mercedes Benz(w123, w126, w124, w201), GM(Buick) , Jeep
4 Peugeot, Subaru, Chrysler, Acura, GM(Nova, Spectrum, Sprint), Mitsubishi, Nissan, Mazda, Toyota, Infiniti, GEO, Suzuki, Isuzu, Mercedes Benz)
5 Honda, Toyota, Suzuki, Mitsubishi, Chrysler, Acura, Lexus, Chevrolet, Dodge, Eagle, Geo, Isuzu, Mercedes Benz
6 Mercedes Benz, GM, Cadillac, Daewoo, Ford, Jaguar, Jeep, Land Rover, Mercury, Pontiac, Porsche, Saab, Saturn
7 Volvo, Saab, Sterling, Citroen, Renault, Fiat, Alfa, Jeep, Mini, Peugeot
8 VW(Vento, T4, Passa-1996, Golf, Beetle, Sharan)
9 Audi(A4, A5, A6), BMW 345, VW(Passa-1997-2002), Porsche (Cayenne)
10 BMW (E46, E36, E34, E39, E38, E32, E90)
11 Audi , VW
12 Ford Mondeo, International, Land Rover, Opel, Ssangyong motor
13 Mercedes Benz(C-class, E-class, S-class, W140, W220, W124, W210, W211, W215, W216, W221, R230) , Chrysler
14 Ford Mondeo, Focus (C-MAX03)
15 Mazda (M3) , Ford
H Handle














2.  Instruction of radiator pressure tester

2.1 check leakage in radiator system with radiator caps (material-Nylon 66)

Step 1: Remove the original radiator cap while the engine is cold.

Step 2: Choose a test cap suiting the connection type onto the radiator. Screw the cap onto the radiator opening(Fig.1).

Step 3: Connect the pump to the test cap through the quick coupling at the hose end.

Step 4: Pump until pressure is approximately 10~15psi(Fig.2). If the gauge pointer perfectly efficient; if the gauge goes down and no fluid discharges can be located, check whether the engine head gasket is worn. (CAUTION: please avoid the pressure up to the 35psi)

Step 5: Finally, release pressure through the button next to the quick coupling, and put away the device, after removing any fluid or dirt.

2.2 Check leakage on original radiator cap

Step 1: Choose the #2A or #2B with available steel radiator.

Step 2: Work the hand pump for few times, and then check the gauge reading for testing leakage. (Fig. 3)

Step 3: Follow the pressure standard shows on original radiator cap.
