Name
：
EP-205 DRIVE SHAFT INSERTION TOOL
Product Introduction：
DRIVE SHAFT INSERTION TOOL Product Detail：

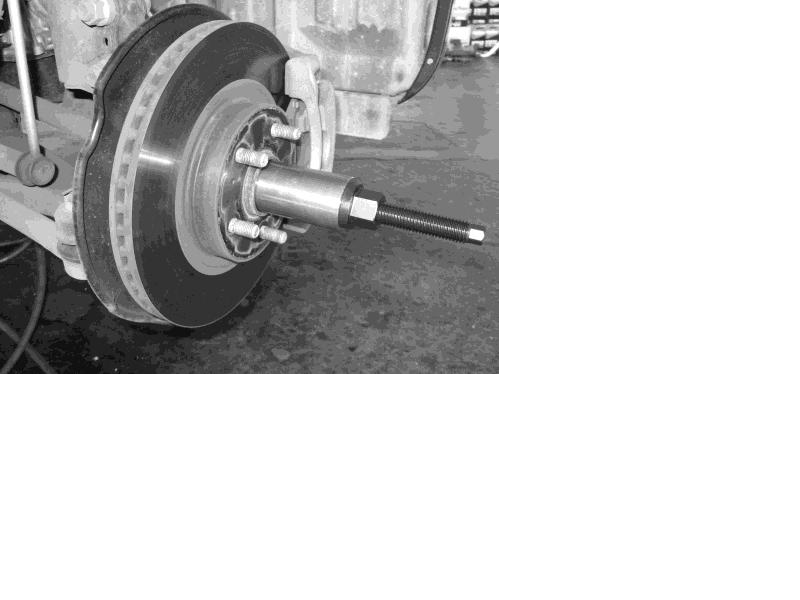

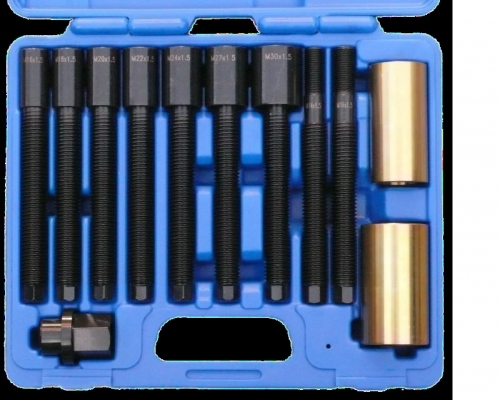

These vehicles have strict tolerances between the drive shaft splines and the wheel hub, we must use special tools like CL-205 for assembly work.This insertion tool can be simple and quickly put the drive shaft fitted into the wheel hub. With wide application in various specifications for drive shaft. Mainly used for VW-Audi (Touareg etc.), Mercedes, BMW, Porsche (Cayenne etc.), Peugeot, Renault, Opel/Vauxhall, etc No. Description No Description 205-1 Shoulder nut 205-7 Spindle M22x1.5 inner thread 205-2 Housing outer Ø39 mm inner Ø 29 mm 205-8 Spindle M24x1.5 inner thread 205-3 Housing outer Ø46 mm inner Ø 36 mm 205-9 Spindle M27x1.5 inner thread 205-4 Spindle M16x1.5 inner thread 205-10 Spindle M30x1.5 inner thread 205-5 Spindle M18x1.5 inner thread 205-11 Spindle M14x1.5 outer thread 205-6 Spindle M20x1.5 inner thread 205-12 Spindle M16x1.5 outer thread   |
