Fiat 1.2L | 1.4L Timing Kit
1.2L | 1.4L 16v
SKU: ET1534A

An updated version of the ET1534 kit to suit the latest Alfa / Fiat 1.2L | 1.4L petrol engines.

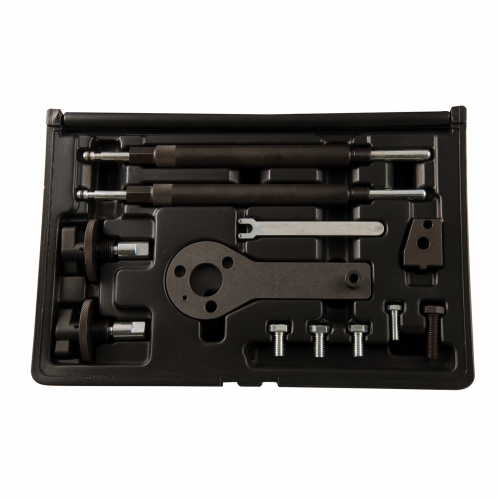

This kit contains the timing tools required to cover the belt replacement procedure for the both early and later variant of these engines. It includes a piston height gauge, camshaft and crankshaft tools, tensioner adjuster, and camshaft sprocket locking tool.

This Fiat range of 1.2L 16V petrol engine was first introduced as long ago as 1997 in the Punto, and a number of variant releases including the 1.4L range of 16 valve / T-Jet engines

The majority of these engines use the same timing tool combination and procedure for the timing belt replacement. However, engine code 192B2.000, 198A1.000, 198A4.000 and 199A8.000 require an additional tool to Ôlock' the camshaft sprocket, while engine code 169A3.000 requires a different tool combination and has a slightly different procedure.

All these timing tools are included in this kit.
Applications: Alfa Giulietta | Mito, Fiat 500 | Doplo | Punto | Ritmo
